LQ Packaging 856 4G – Tested with 1 x 5L Jerrican

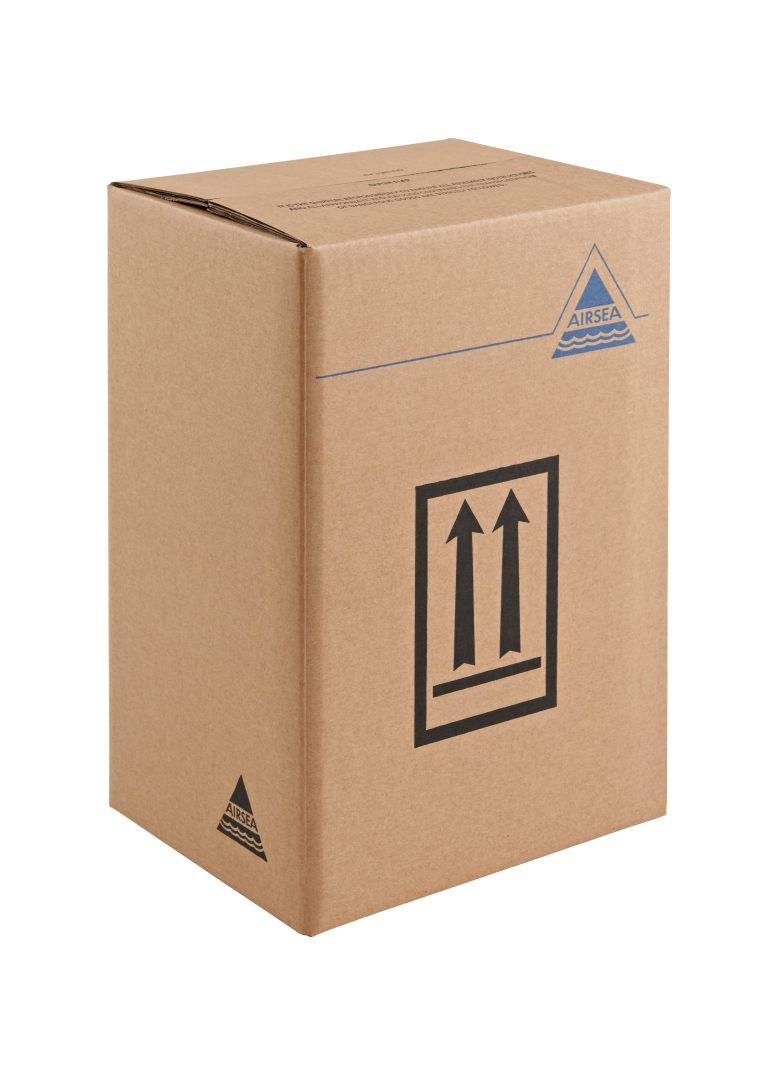

This LQ 856 Fibreboard Box has been capability tested and is proven to meet Road, Air and Sea transport regulations.

This Fibreboard Box has been capability tested with 1 x 5L Jerrican. Inner sold separately.

Internal Dimensions 190mm x 147mm x 267mm
External Dimensions 202mm x 159mm x 297mm

Next Day Delivery

On All Our Products

On Orders

Before 2pm

5.0 Stars

Average rating on

Google

LQ Outer Packaging- capability proven solution

Limited quantity packaging must consist of inner packaging packed inside suitable outer packaging. Although UN approved packaging is not required for LQ, the outer packaging needs to meet capability requirements set out in the relevant modes of transport regulations.

Here at Air Sea Containers we have done the testing for you, this LQ 856 packaging solution has been capability tested with 1 x 5L Jerrican and is compliant with Road, Air and Sea regulations.

  • Meets Cobb tests and construction requirements of 6.1.4 UN Model Regulations
  • Documented 1.2m Drop Test and 3m Stack Tested
  • Manufacturers Assembly Instructions Provided

We also offer:

  • Next Day Delivery Service
  • Custom Packaging Design and Capability Testing

Boxes without stabilisers are available here LQ packaging solutions for various inners. These meet the construction requirements of 6.1.4 of the UN Model Regulations but will require capability testing to suit different inner packaging configurations you may need.

Ask us about our design and testing service.

For inner packaging click here.

Product Spec Sheets

Assembly Sheet
Download

FAQs

This 856 LQ 4G box was capability tested with 1 x code 0022/Nat 5L Jerrican. The liquid used during testing was water.
The 856 LQ 4G Box is suitable for 1 x 5L Jerrican. When using your own 5L Jerrican it is recommended the user checks the Jerrican is equivalent to that used in the tests. If unsure contact Air Sea for advice and ask about our capability testing services.
The 856 LQ 4G Box meets Cobb tests and construction requirements. Additional Air regulation requirements of 1.2m Drop Tests and 3m Stack Tests have been passed. The liquid used during testing was water.
